CENTRIFUGAL FILTERS

CINTROPUR INDUSTRIAL RANGE

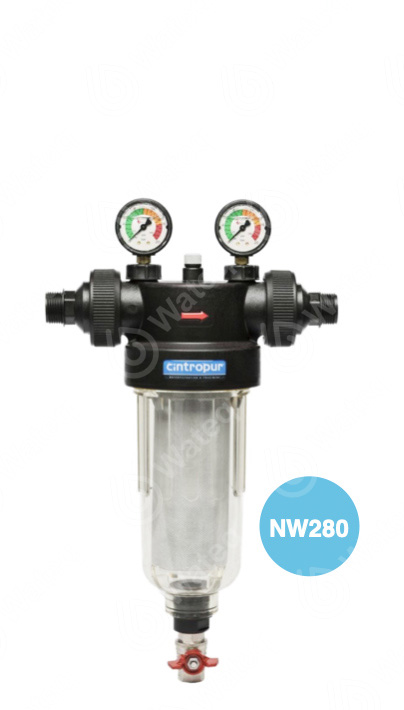

Cintropur NW280 Centrifugal Filter

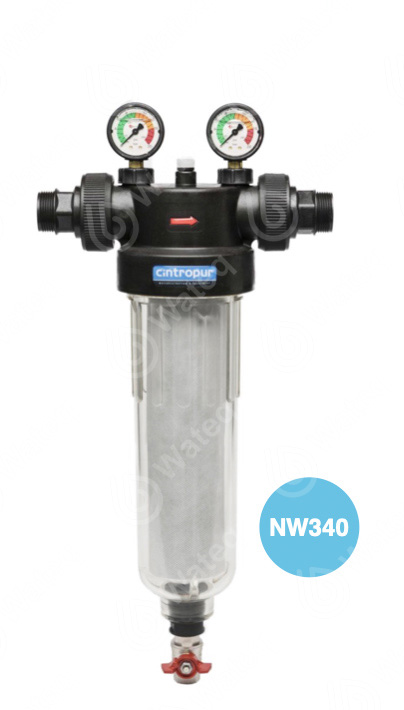

Cintropur NW340 Centrifugal Filter

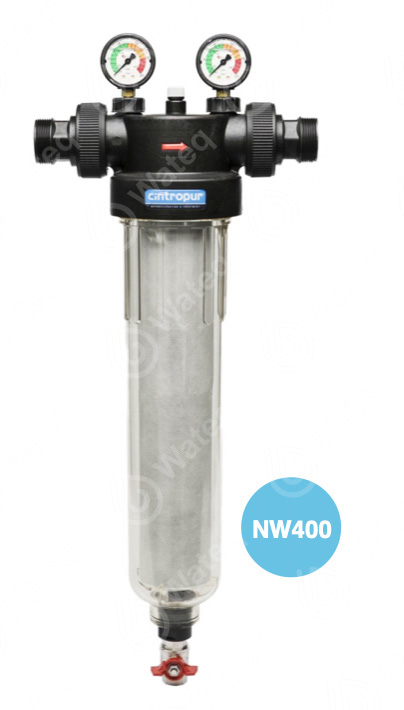

Cintropur NW400 Centrifugal Filter

RefFilter TypeConnection TypeAvg Flow RateMax Working PressureMax Working Temp
FWCCNW280NW 2801”5.5 m3/hr16 bar50ºC
FWCCNW340NW 3401 1/4”10.5 m3/hr16 bar50ºC
FWCCNW400NW 4001 1/2”12.5 m3/hr16 bar50ºC
Cintropur NW500 Centrifugal Filter

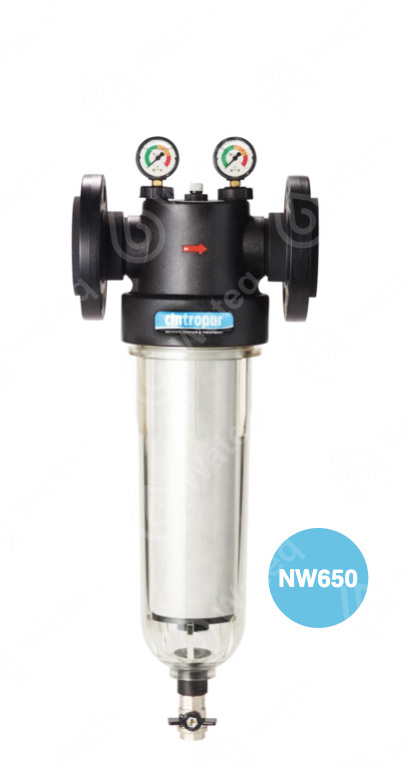

Cintropur NW650 Centrifugal Filter

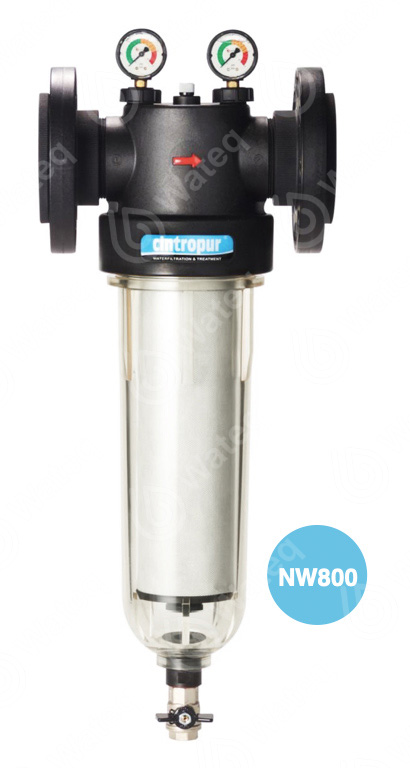

Cintropur NW800 Centrifugal Filter

RefFilter TypeConnection TypeAvg Flow RateMax Working PressureMax Working Temp
FWCCNW500NW 5002”18 m3/hr16 bar50ºC
FWCCNW650NW 6502 1/2”25 m3/hr16 bar50ºC
FWCCNW800NW 8003”32 m3/hr16 bar50ºC

Industrial Range Centrifugal Water Filters

Industrial Range Centrifugal Filters information.

For the protection of Industrial and Residential installations by filtering solid particles (earth, sand, rust etc) suspended in the water. All Cintropur Light Industrial Filters feature :

  • Pressure Gauges : 0 to 20 bar, indicating system pressure and when filter sleeves need to be changed.
  • Centrifugal Vane : Creating a cyclonic effect on the incoming water which precipitates larger particles to the bottom of the bowl.
  • Drain Valve : For simple evacuation of impurities collected at the bottom of the bowl.

Main advantages

  • Double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
  • Filtration practically without accumulation
  • Low pressure drop
  • High and constant flow rate
  • Large choice of filtering fineness ranging from 5 to 300 microns
  • 100% synthetic filter and high resistance
  • Sealing guaranteed thanks to the O-ring system
  • Fast and easy rinsing thanks to the drain cock
  • Long lifetime and uninterrupted spare parts supply
  • Reduced need for maintenance
