was approved pressure vessels
2 ½” Threaded Top Hole
Vessel | Total Height mm | Volume L |
06 x 35 | 886 - 890 | 14.4 |
07 x 17 | 444 - 448 | 8.8 |
07 x 30 | 776 - 780 | 16.8 |
07 x 35 | 899 - 903 | 20.4 |
08 x 17 | 433 - 437 | 11 |
08 x 18 | 428 - 432 | 11.4 |
08 x 22 | 556 - 560 | 15.4 |
08 x 35 | 900 - 904 | 25.7 |
08 x 44 | 1122 - 1126 | 33.6 |
09 x 35 | 901 - 905 | 31.3 |
10 x 19 | 500 - 504 | 19.1 |
10 x 35 | 901 - 905 | 38.9 |
10 x 44 | 1120 - 1124 | 48 |
10 x 54 | 1383 - 1387 | 60.7 |
12 x 48 | 1229 - 1235 | 75.6 |
13 x 54 | 1367 - 1375 | 103.1 |
4″ Threaded Top Hole
Vessel | Total Height mm | Volume L |
14 x 65 | 1630 - 1660 | 140 |
16 x 49 | 1260 - 1278 | 128 |
16 x 65 | 1615 - 1650 | 170 |
18 x 65 | 1706 - 1746 | 250 |
21 x 36 | 1010 - 1040 | 164 |
21 x 60 | 1610 - 1640 | 309 |
24 x 69 | 1850 - 1890 | 435 |

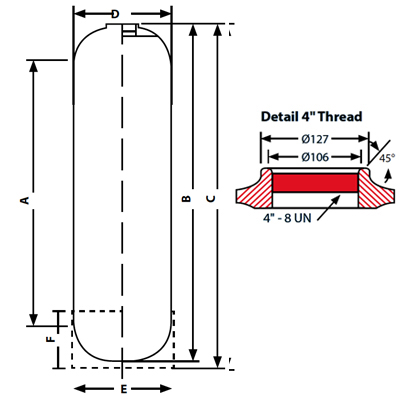

4″ Threaded Top and Bottom Hole
Vessel | Total Height mm | Volume L |
14 x 65 | 1800 - 1830 | 147.2 |
16 x 65 | 1790 - 1830 | 194.5 |
18 x 65 | 1865 - 1890 | 245 |
21 x 36 | 1141 - 1171 | 164 |
21 x 60 | 1740 - 1770 | 310 |
24 x 69 | 1990 - 2020 | 435 |
30 x 72 | 2010 - 2050 | 712 |
36 x 72 | 2110 - 2150 | 1072 |
6″ Flanged Top Hole
Vessel | Total Height mm | Volume L |
14 x 65 | 1693 - 1713 | 138 |
16 x 68 | 1704 - 1724 | 170 |
18 x 68 | 1762 - 1792 | 248 |
21 x 66 | 1898 - 1918 | 450 |
24 x 75 | 1898 - 1918 | 450 |
30 x 78 | 2043 - 2073 | 710 |
36 x 78 | 2119 - 2149 | 1020 |
42 x 78 | 2050 - 2090 | 1360 |
48 x 82 | 2103 - 2133 | 1840 |
6″ Flanged Top and Bottom Hole
Vessel | Total Height mm | Volume L |
14 x 65 | 2064 - 2084 | 140 |
16 x 68 | 2088 - 2108 | 172 |
18 x 68 | 2105 - 2135 | 250 |
21 x 66 | 2000 - 2020 | 310 |
24 x 75 | 2210 - 2230 | 450 |
30 x 78 | 2270 - 2300 | 710 |
36 x 78 | 2310 - 2350 | 1020 |
42 x 78 | 2382 - 2422 | 1360 |
48 x 82 | 2420 - 2465 | 1840 |
55 x 104 | 2641 - 2681 | 2619 |
55 x 120 | 3041 - 3081 | 3220 |
55 x 130 | 3291 - 3331 | 3602 |
55 x 140 | 3541 - 3581 | 3984 |
63 x 103 | 3230 - 3270 | 4265 |
63 x 113 | 3480 - 3520 | 4760 |
63 x 123 | 3730 - 3770 | 5255 |
Pressure Vessels
WRAS Approved Pressure Vessels information.
We would always recommend a WRAS approved composite vessel if the application is for potable water.
A WRAS approved tank guarantees that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be of an appropriate quality and standard.
WRAS approved composite vessels are a non-corrosive, cost effective way to treat potable water. The fibreglass construction offers performance and durability in the harshest environments, from farms, basements, outhouses, plant rooms and factory floors.
